Features

Excellent with simple, safe and easiest handling and no wire rope splinters.

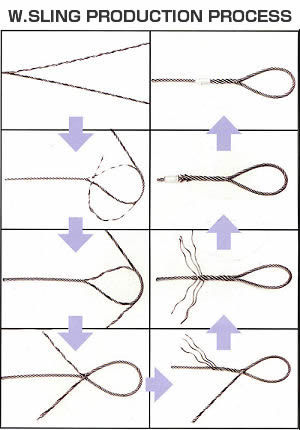

Manufacturing in the process of FLEMISH measures, the W-SLING have been succeeded and obtained with patent No.746657 through our many years efforts and our various thoughts in the technical measures and now we can full recommend you to use our products in every fields in the industries and many other purposes as STRONG POWER,
EASIEST HANDLING, SPEEDY AND SAFE.
for not only PROFESSIONAL USE but aalso PRIVATE use at home.

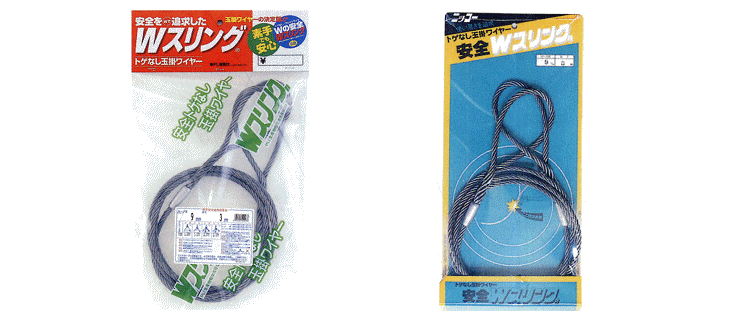

"NIKKO" WIRE ROPE W.SLINGS -PACKING DETAILS

Rope dia	Length	Contents
6mm	1.0m	50
	1.5m
	2.0m
	2.5m	40
	3.0m
	3.5m
	4.0m
	5.0m	30
8mm	1.0m
	1.5m
	2.0m
	2.5m	25
	3.0m	25
	3.5m	20
	4.0m
	5.0m
9mm	1.0m	30
	1.5m	25
	2.0m	25
	2.5m	20
	3.0m
	3.5m
	4.0m
	5.0m	15

Rope dia	Length	Contents
10mm	1.0m	30
	1.5m	25
	2.0m	20
	2.5m	20
	3.0m	15
	3.5m
	4.0m
	5.0m	12
12mm	1.0m	30
	1.5m	20
	2.0m	15
	2.5m	15
	3.0m	12
	3.5m	10
	4.0m
	5.0m
14mm	1.0m	15
	1.5m	15
	2.0m	10
	2.5m
	3.0m
	3.5m	8
	4.0m
	5.0m

Rope dia	Length	Contents
16mm	1.0m	15
	1.5m	10
	2.0m
	2.5m
	3.0m	8
	3.5m
	4.0m
	5.0m	6
18mm	2.0m	8
	3.0m	6
	4.0m	6
	5.0m	5

Box dimensions

●325×550×130　●325×550×262

●325×750×270　●415×850×200

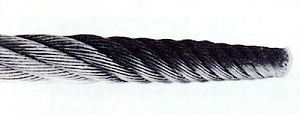

The process is blown tip Adhesion to the body makes it easy to
1m / m from 28m / m terminal blow to the process, we willundertake.
		Requests from customers if there is only one touch tap to put the aluminum tube without anyone taking the time and effort andexpense Easily replaced on the spot.

According to the application package available on request
